Drip irrigation forms is a method of precision irrigation with low pressure pipeline system, the water
directly into the field, after installed on the capillary dripper orifice or drip irrigation machine, such
as the water drop by drop evenly and slowly drip into the crop root zone in soil nearby, make the crop
root system of the most developed area soil often maintain appropriate humidity, soil microbial activity
of water fat gas heat, always in good condition, and to create favorable conditions for high and stable yield
crop.

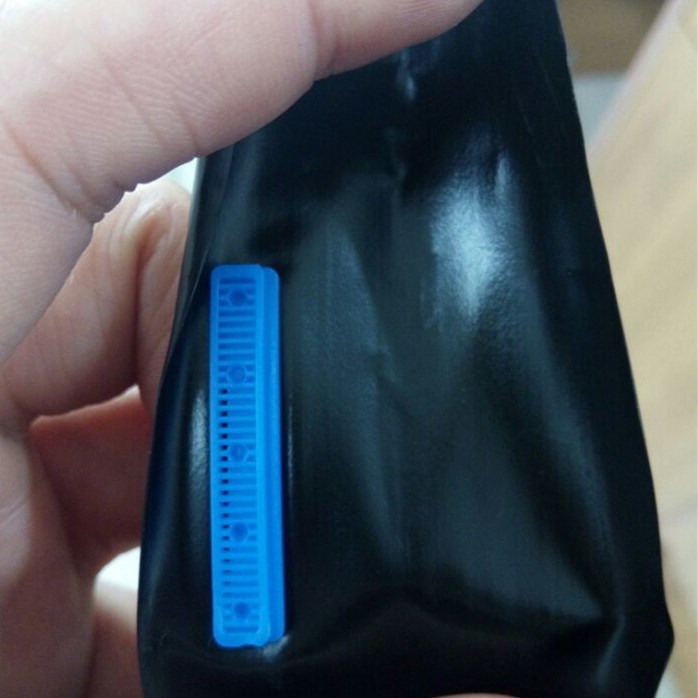

1. The flat drip irrigation belt is an integrated drip irrigation tape with flat shape drip irrigation
on the inner wall of the pipe belt, which is widely used in greenhouse greenhouses and irrigation
of field economic crops.
2. Dripper and pipe band integration, easy to install and use, low cost, less investment.
3. The dripper has self – filtering window, good anti – clogging performance.
4. Using maze runner, have certain pressure compensation effect.
5. Dripper spacing can be determined according to user requirements
| Diameter(mm) | 16 | |||
| Thickness(mm) | 0.2 | 0.3 | 0.4 | 0.6 |
| Flow rate(l/h) | 2.9 | 2.7 | 2.6 | 2.5 |
| MAX.working pressure(MPa) | 0.1 | 0.15 | 0.2 | 0.25 |
1. It is used for planting crops in greenhouse, reducing diseases and pests, saving chemical fertilizer
and pesticides, and improving economic efficiency.
2. Applied to orchard irrigation, can effectively improve yield, improve fruit quality and control
weeds growth.
3. It is suitable for varieties of field crops, such as cotton, watermelon and vegetable.
4. Demonstration drawing of demonstration drawing of demonstration drawing of field drip irrigation
tape performance specification parameter.
| Diameter(mm) | Thickness(mm) | Drip holes space(m) | Flow rate(L/h) | Working pressure(Kpa) |
| 16 | 0.3 | 100-300 | 2~3 | 50~100 |
1. The nano formula has high strength, wear resistance and long life.
2. The dripper has the effect of turbulent flow to resist the uniform dripping.
3. The ground can be laid over 100 meters.
4. Easy to install, use and maintain.
1. Field crops, orchards and trees in areas where water and labor are scarce.
2. It is widely used in open planting and greening of greenhouse.
1. Drip irrigation pipes and dripper are easily blocked and require high water quality, so filters must be
installed.
2. Drip irrigation can not regulate the microclimate in the field, is not suitable for freezing irrigation, in
vegetable irrigation can not use drip irrigation system to apply manure.
3. Drip irrigation investment is higher, consider the economic benefits of crops.
