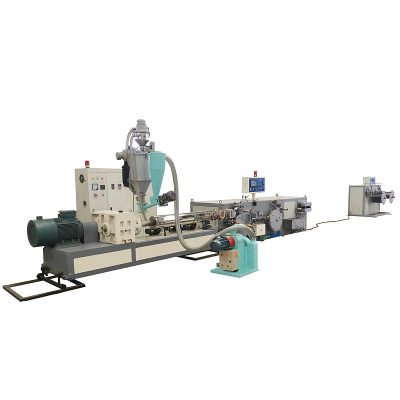

Melt flow type drip irrigation tape machine Features

1. Screw of the drip irrigation tape machine extruder adopts special design which makes raw materials plasticized well and the line works steadily.
2. The main motor, shaping device and tractor of the drip irrigation tape machine adopt frequency conversion control, which has characteristics of easy adjustment, reliable running, steady work and low energy consumption.
3. The control of heating temperature of the drip irrigation tape machine extruder and mold adopt temperature-automatic control system which has characteristics of high accuracy of control and obvious effect of energy-saving.
4. Winding machine of the drip irrigation tape machine adopts torque motor which overcomes tension-blemish effectively. And winding machine is also equipped with meter-counter and can alarm and stop automatically.

The drip irrigation tape machine main technical parameters

 Certificate /Patent:

inished product

	Diameter（mm）	Φ16
	Normal working pressure（Mpa）	0.05-0.07
	Outlet distance（mm）	100/150/200/300
	Maximum paving length（m）	200
	Roll length（m）	≤2000
	Thickness（mm）	0.15-0.3
	Flow（L/H）	0.5-1.5
	Filter mesh（mesh）	120
	Uniformity（%）	≥90

Product description

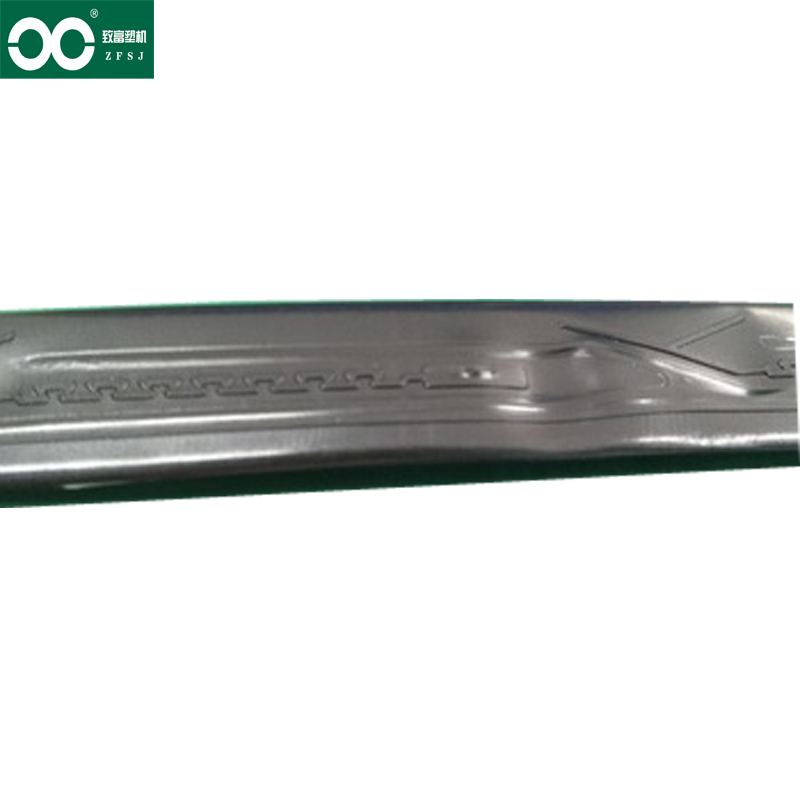

Melt flow type drip irrigation tape is made of PE film with a round type outlet or aperture type  outlet and labyrinth type runner type. And the flow channel appears labyrinth type.

Product application

Other related drip irrigation tape machine

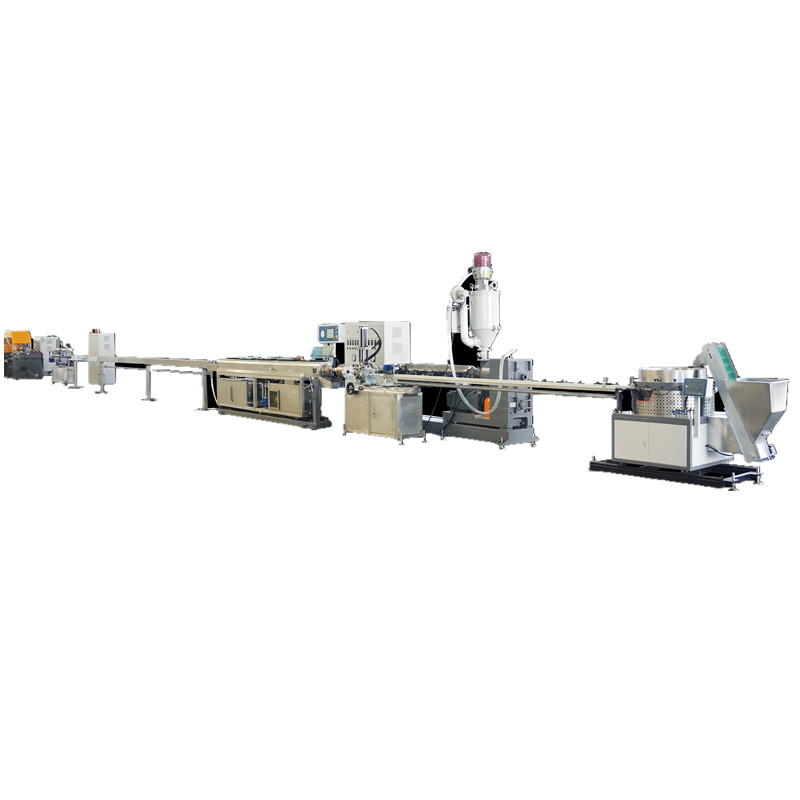

Inline flat dripper drip irrigation machine                                            Inline round dripper drip irrigation machine
