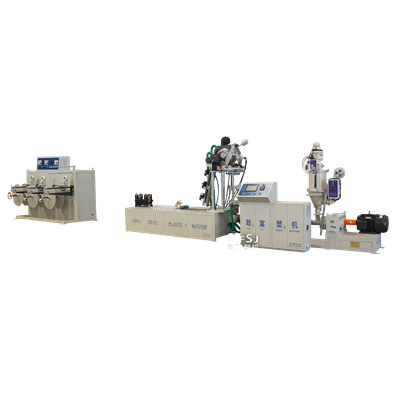

The single-wing labyrinth drip tape irrigation machine is specialized in producing production equipment for farmland, garden irrigation and as a new type of plastic irrigation equipment for water saving, energy saving, production increase and income generation.
● The size of the membrane tube is controlled by the measuring instrument produced by our company, and the measurement and control is accurate, stable and reliable.
● The main motor, forming machine and tractor are controlled by frequency conversion system, which is easy to adjust, reliable in operation, stable in operation and low in energy consumption.
● The screw barrel of the extruder is made of alloy material, which is made of tempering and ion nitriding. It has high strength, high wear resistance and long service life. The screw design is unique, the raw material is plasticized and the production is stable.
● The heating temperature of the extruder and the die adopts an automatic temperature control system, which has high temperature control precision and remarkable energy saving effect.
● The irrigation hose is controlled by a torque motor to effectively overcome the tension defects and is equipped with a digital metering device. The winding length can be arbitrarily set below 2500 meters (if required to extend the number of meters, can be customized) winder with memory, automatic alarm shutdown and other functions.
● The use of drip irrigation hose is especially suitable for climatic conditions in arid, semi-arid areas and mountainous areas, achieving the goal of saving water and increasing production.
● The design of the whole electrical equipment is coordinated, reasonable, beautiful and highly automated.

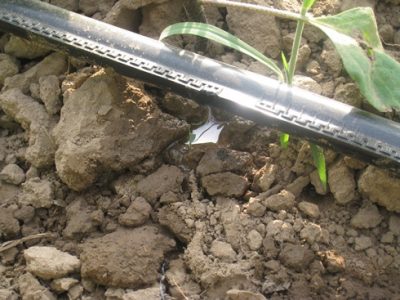

The drip irrigation hose can be widely used for water-saving irrigation in farmland (cotton, grape, peanut, soybean, wheat, etc.), greenhouse, garden and other fields and mountainous hills.
| Model | SJDY-60-AIV |
| Specification | φ12～φ20 |
| Production speed | 75 m/min |
| Main driving power | 18.5 KW |
| Max.extruding capacity | 55 KG/H |
| Heating power | 22 KW |
| Filter changing method | Durable filter（patent） |
| Driving power of shaping wheel | 0.75 KW |
| Driving power of tractor | 0.75 KW |
| Winding motor | Torque motor 6 N.m×3 |
| Water consumption | 1 m³/h |
| Air consumption | 0.3 m³/h |
| Installation power | 44 KW |
| Overall dimension（L×W×H） | 13.7 m×1.55 m×2.5 m |
| Weight | 2400 kg |
