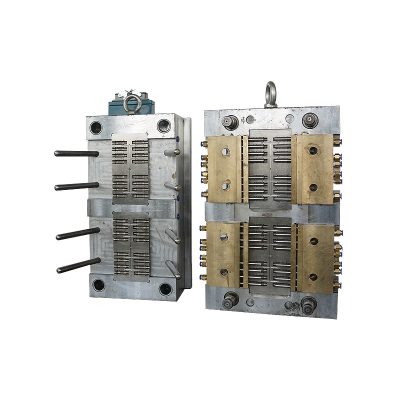

The round dripper mold cavity parts can be interchangeable, after the exchange, it can produce the dripper of different flow rate.
Round dripper mold structure adopts submarine gate, to achieve the goal of automatic production
The round dripper mold cavity parts can be interchangeable, after the exchange, it can produce the dripper of different flow rate.
The round dripper mold material is from sweden good-quality mold steel S136H,HRC50-52 , mold service life more than 1.5 million times .
The round dripper mold processing precision reach to ±0.01mm, ra0.1
Dripper manufacture deviation cu ＜1%
Dripper flow rate deviation factor ＜4%
Technical parameters of the round dripper mold
|
Cavity quantity |
sixteen cavities |
Thirty-two cavities |
Note |
|
Overall dimensions of the mold（mm） |
270×400×250 |
450×600×350 |
|
|
The runner forms |
Cold runner mold/hot runner mold |
hot runner mold |
|
|
Gate forms |
Submarine gate |
Submarine gate |
Balance material feeding, automatically interrupted pouring |
|
Pushing-out mode |
Once pushing-out of ejector pin |
Once pushing-out of ejector pin |
Making sure that the final products will drop off automatically |
|
Cooling mode |
Water-cycle cooling |
Water-cycle cooling |
|
|
Working mode |
Automatic production |
Automatic production |
|
|
Service life |
1.5million times |
1.5 million times |
|
|
Producing deviation |
≤5% |
≤5% |
Deviation of emitter flowing rate |
|
Emitter specifications |
|
||
|
Model of injection molding machine for it |
SA1600 |
SA2000 |
|
The company established the numerical control mold processing center in 2007, then introduced the Swiss GF company’s mirror electric spark machine, we have a walking slowly on the device wire EDM, CNC EDM machines, surfacegrinding machine.
The company mainly develops and produces flat irrigation dripper mold, round dripper mold, external dripper mold, drip irrigation pipe mold and so on.
